Theodolites/Transits

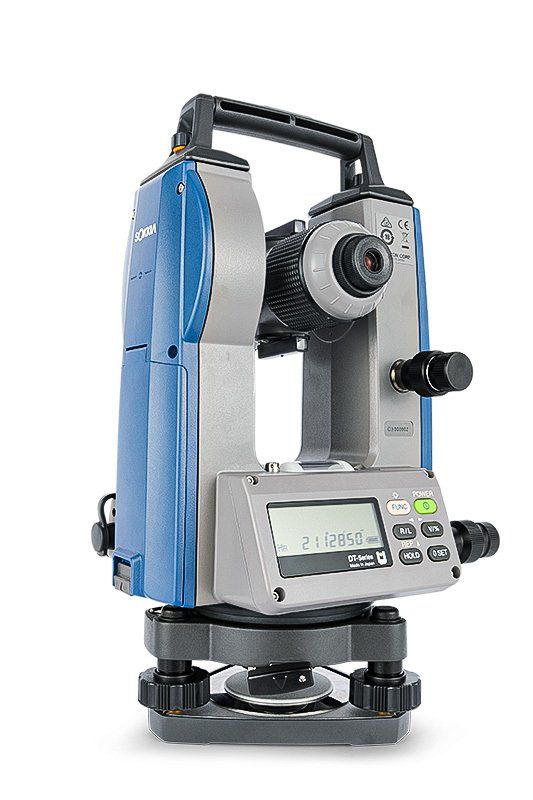

DT50 Series

The DT50 is a lightweight, compact alignment and angular measurement device which boasts up to 30 workdays of power; the highest water and dust protection in its category; and convenient, high-precision laser guidance.

High-accuracy measurements (5”, 7” and 9” models)

Ultra-rugged IP66 dust and heavy rain protection

Compact and light weight

Long-lasting Li-ion or AA battery life

Easy-to-use LCD backlit display(s)

Precise laser pointer guidance

Embedded tilt sensor for 5” and 7” models

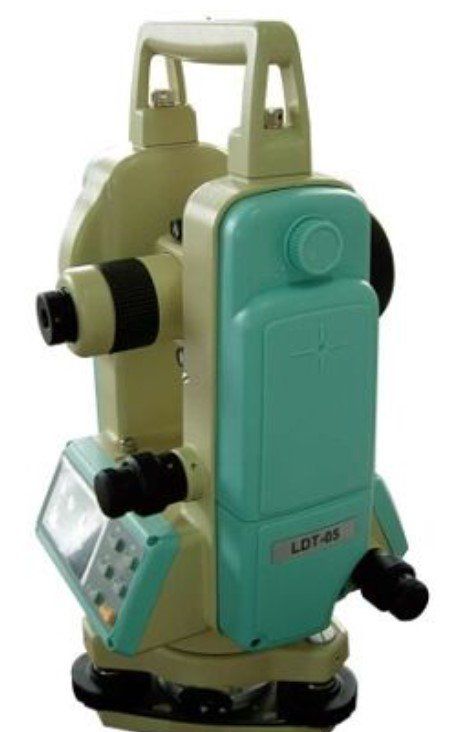

LDT05

The Leica LDT-05 Digital Electronic Theodolite is an economical but advanced instrument for measuring angles and slope, with five-second accuracy for precise measurements, a laser plummet for fast and easy setup, a reticle illuminator for bright views, and other attractive highlights. The Leica LDT-05 Digital Electronic Theodolite measures angles with excellent precision for the most demanding job requirements. The automatic vertical angle compensator, or tilt sensor, which can be switched on or off, ensures accuracy is maintained if your instrument shifts out of balance. If the theodolite shifts out of the compensation range, a tilt warning will display in the vertical angle reading space, helping you avoid costly measurement errors.

Measure horizontal and vertical angles

5-second accuracy

Vertical axis compensator diminishes costly errors

Laser plummet for convenient setup

Horizontal angle indicator assists with faster orientation

Reticle illuminator for low light conditions

Numerous customization options

Water resistant and dustproof to IP-54

NiMH rechargeable battery pack plus charger

AA alkaline battery holder for additional power option

Dual backlit LCD panels

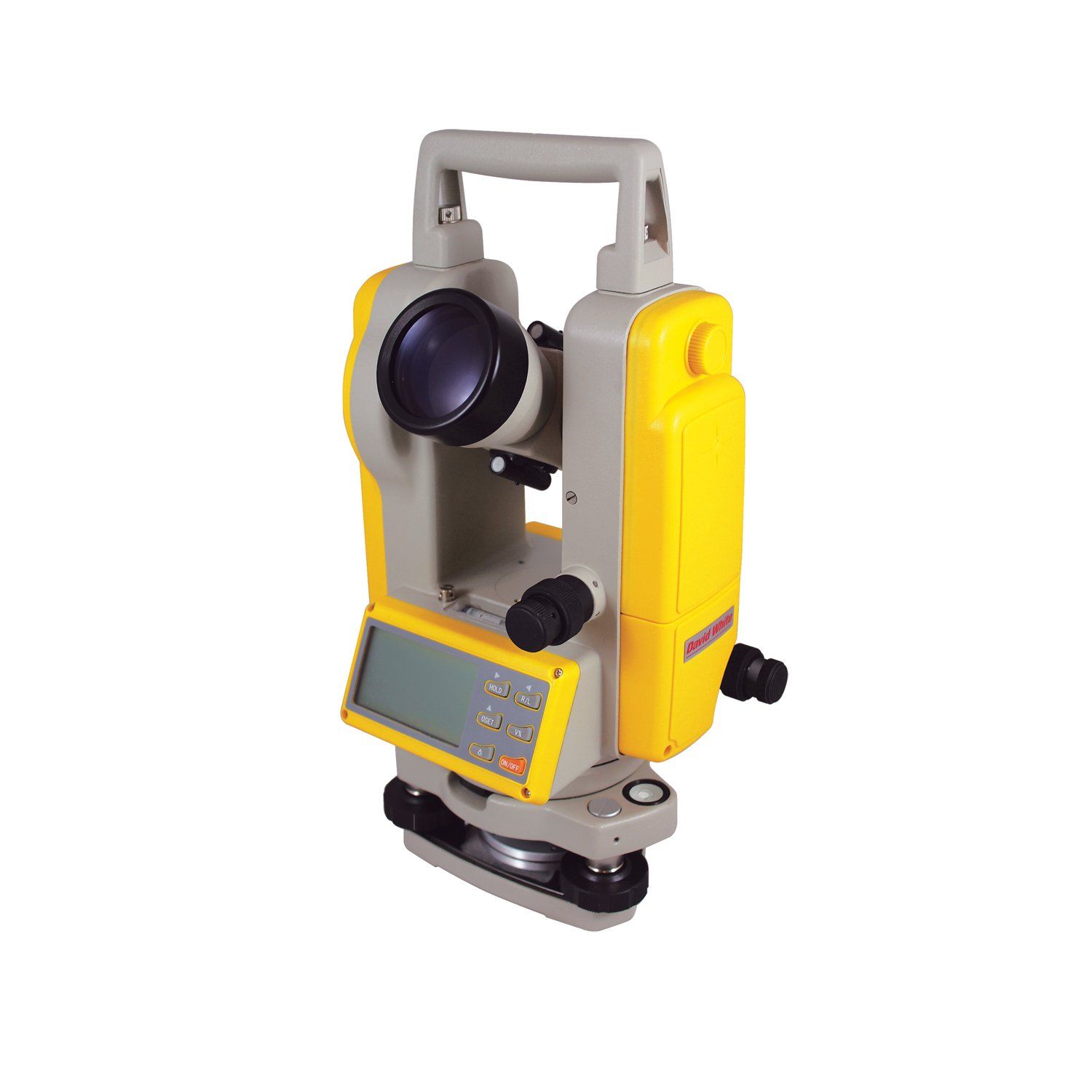

David White DT8-05P

DT8-05P 5-second digital theodolite features with optical plummet. Simple, push button functions gives the user precise LCD digital readouts.

Incremental encoding detection system with dual digital displays

Automatic power shut-off

Coaxial tangent and clamp screws provide ease of use in sighting and alignment

Built-in battery pack can be attached and detached by a single action

Water resistant, sealed construction

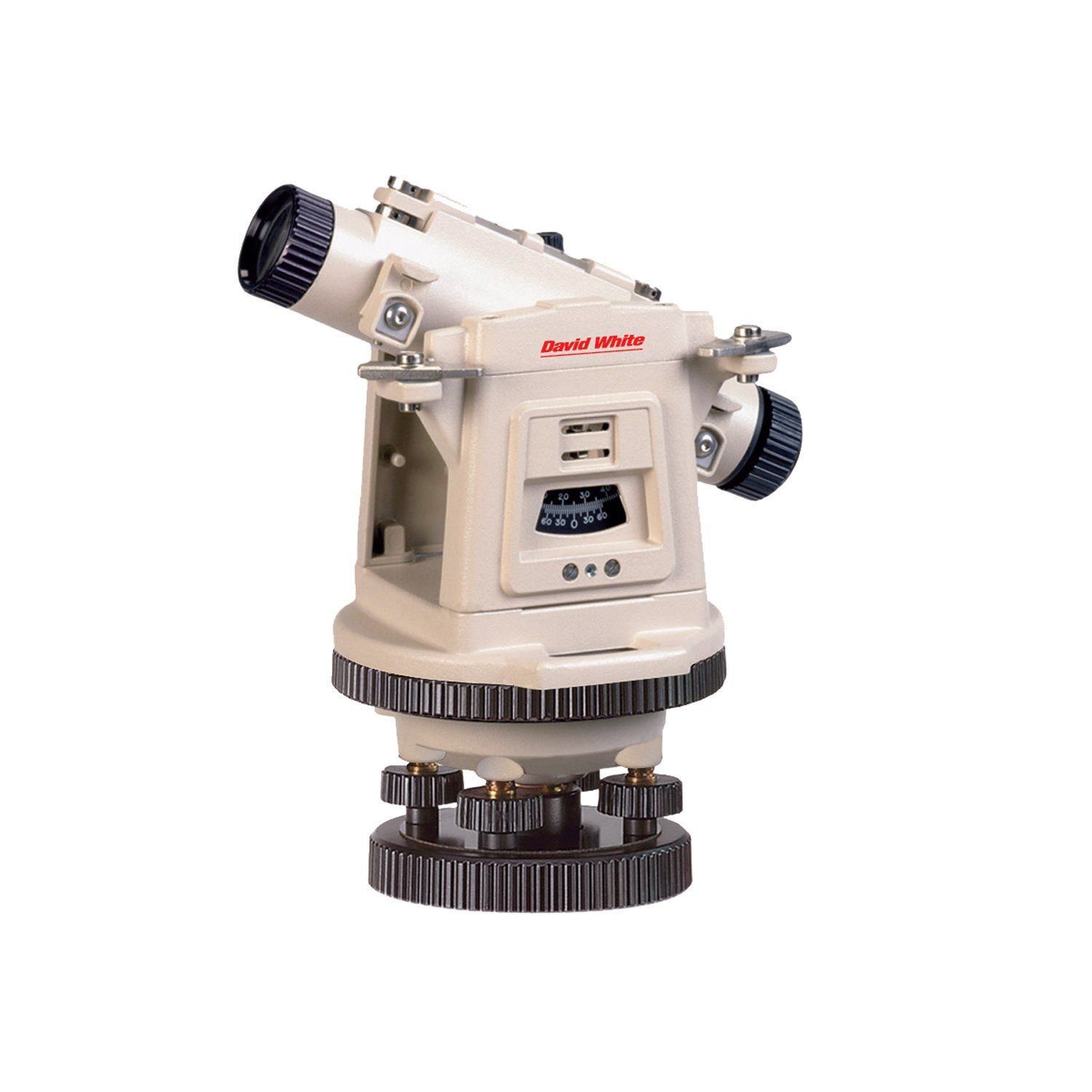

David White LT8-300

LT8-300P universal optical level transit features optical plummet. Ruggedness and dependability make this five minute instrument the first choice for practically every horizontal and vertical sighting application in construction.

±3/16-in at 150-ft (4.75mm at 45m) leveling accuracy

Up to 400-ft (120m) range

Horizontal circle, lock and tangent

 Vertical arc, lock and tangent

1:100 stadia with glass reticle

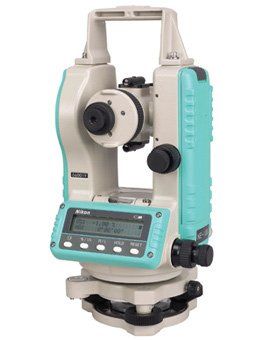

Nikon NE101

Ease of use, reliability, and durability make the Nikon NE-101 theodolite a smart choice for your general construction, alignment and layout applications. Ideal for concrete form alignment, anchor bolt positioning, and steel column erection. The theodolite enables a number of positioning techniques: 90-degree layout, checking angles, alignment and plumb, as well as short range grade work and leveling.
